Technical Specifications
General
Device Interfaces
- 802.11a/g/n/ac wireless LAN
- Four 10/100/1000 Gigabit LAN ports
- 10/100/1000 Gigabit WAN por
- Two USB ports (one USB 3.0, one USB 2.0)
Standards
- IEEE 802.11ac
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11a
- IEEE 802.3
- IEEE 802.3u
Minimum System Requirements
- Internet Explorer® 11, Mozilla® Firefox® v28, Google Chrome v33, or Safari v7
- Ethernet Network Interface
- Cable, DSL or Fiber Optics
- Internet access - for optimal performance, pair the DIR-890L with an AC adapter
Functionality
Advanced Features
- SmartConnect
- Guest zone
- mydlink SharePort™ web access
- Multi-language web setup wizard
- Green Ethernet
- DLNA media server support
- Advanced AC SmartBeam
- Dual active firewall
- Network Address Translation (NAT)
- Stateful Packet Inspection (SPI)
- VPN Passthrough (PPTP/L2TP/IPsec)
- Advanced QoS
- QuickVPN - L2TP over IPsec
mydlink Lite Mobile App Features
- Remote Management
- View current upload/download bandwidth
- View currently connected clients
- View web browsing history per client
- Block/unblock client network access
- Manage wireless network details
- Accessible through a web browser or iOS or Android
- mobile app
Mobile App Support
- mydlink Lite
- mydlink SharePort
- QRS Mobile v1.5
Wireless Security
- WPA & WPA2 (Wi-Fi Protected Access)
- Wi-Fi Protected Setup (WPS) PIN/PBC
Dimensions
- 15.23 x 9.73 x 4.7 inches
Power
- Input: 100 to 240 V AC, 50/60 Hz
- Output: 12V DC, 5A
Temperature
- Operating: 32 to 104 F
- Storage: -4 to 149 F
Humidity
- Operating: 0% to 90% non-condensing
- Storage: 5% to 95% non-condensing
Order Information
Part Number

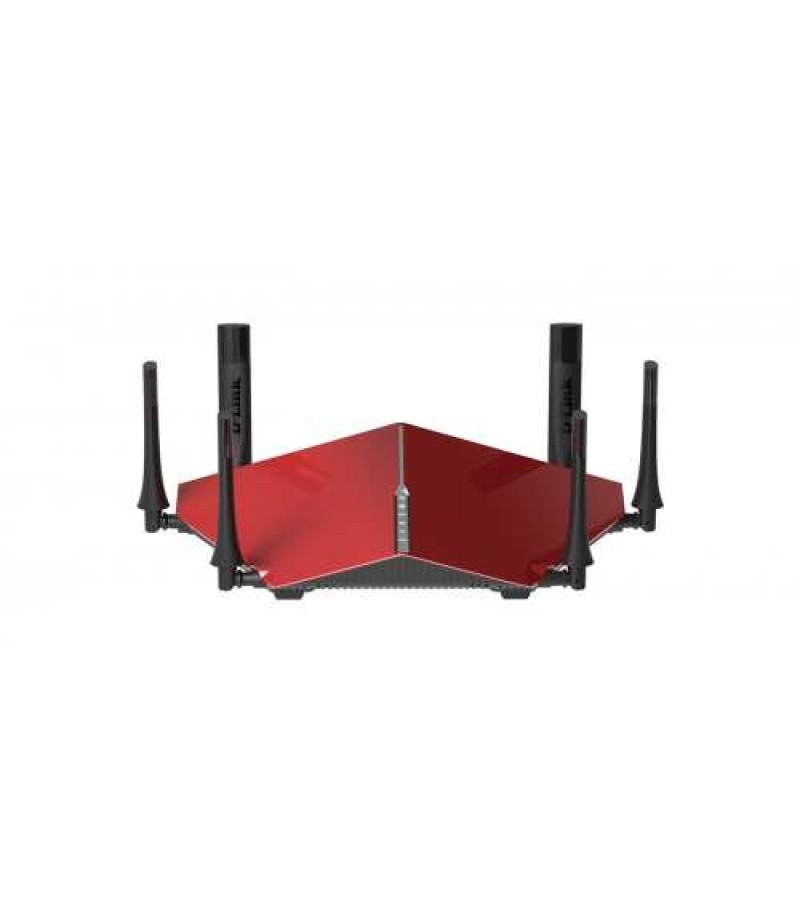

- DIR-890L
Description
- Wireless AC3200 Tri Band Gigabit Cloud Router
