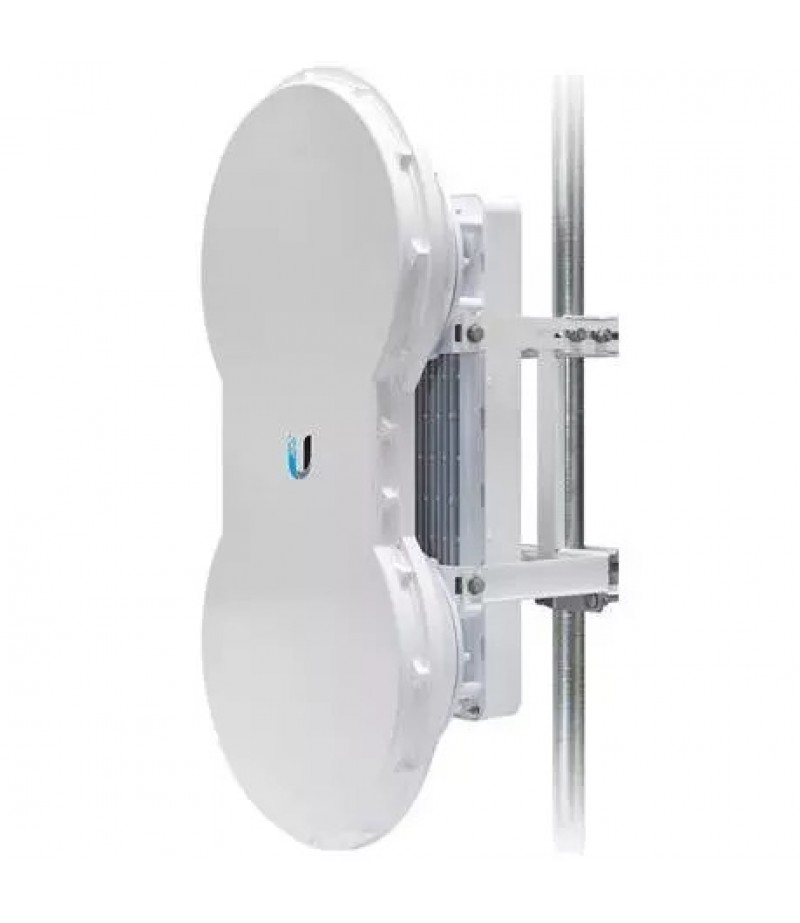

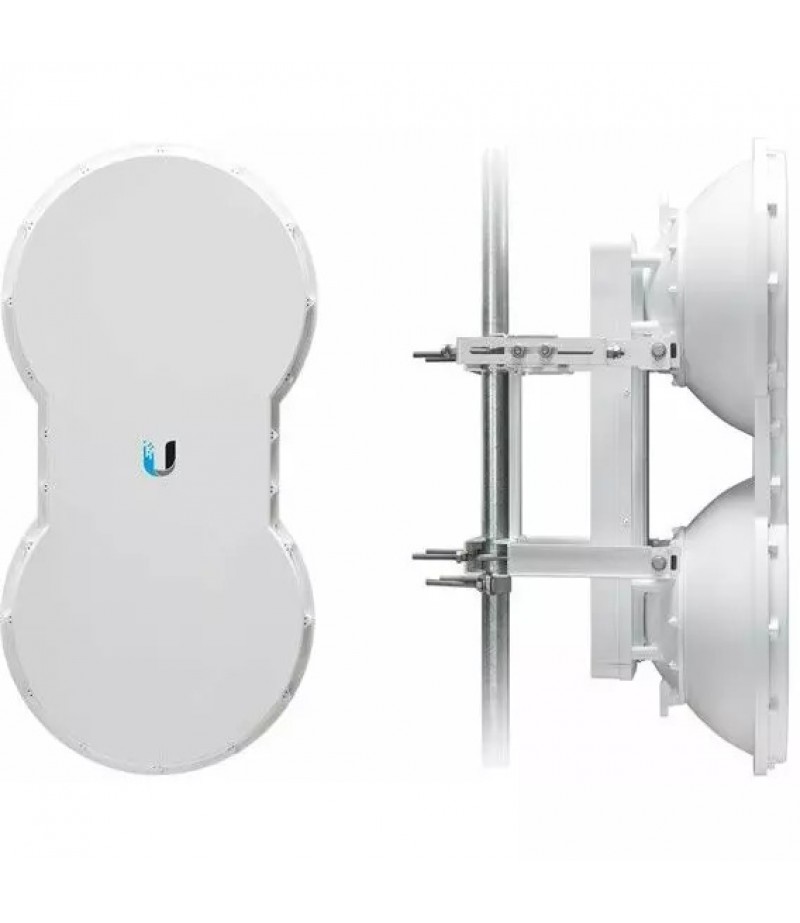

Ubiquiti AirFiber AF-5U, 1Gbps+ Backhaul, 5.7-6.2GHz

Ubiquiti AirFiber AF-5U, 1Gbps+ Backhaul, 5.7-6.2GHzOVERVIEWThe most advanced current backbone technology in the 5GHz band. Thanks to advanced HDD technologies, eXtended Range, 1024QAM modulation, it communicates at a speed of up to 1.2+Gb/s.The connection is operated in the free 5GHz band, so you do not have to pay any license fees for its operation.In addition to the standard TDD and FDD support, AirFiber came with the new HDD (Hybrid Division Duplexing) technology. AirFiber 5 also brings new xRT (eXtended Range Technology) technology enabling a maximum range of 100+km.This, together with other innovative technologies and the airOS F system, form a unique connection that is very easy to operate and install, and that achieves very high transfer speeds with very low latencies.PACKAGE CONTENTSdeviceholderPoE power adapterpower cableduct tape (2)SPECIFICATIONSWireless frequency [GHz]: 5Sensitivity [dBm]: -95Frequency range [MHz]: 5725-6200 GigabitLAN: YesGPS module: YesIsolation between connectors [dB]: 28LAN: (1) 10/100/1000Mbps + (1) 10/100MbpsMax. power consumption [W]: 40Maximum modulation: 1024QAMPower supply via PoE: 42 .. 58V DCOperating mode: BridgeOthers: RJ-12 - measuring tone portNumber of LAN ports: 2Number of built-in antennas: 4IPv6 support: Transparent (bridge mode)PoE: InputOperating temperature: -40 to 55Front-to-back ratio [dB]: 70WiFi transmission speed - 5GHz [Mb/s]: 1280Encryption: 128bit AESButtons: ResetAntenna type: Built-inOutdoor use: Yes5GHz Transmit Power [dBm]: 27Radiation angle - H.pol.: 6Radiation angle - V.pol.: 6Antenna gain [dBi]: 23Width [mm]: 468Height [mm]: 938Depth [mm]: 281Weight [g]: 16000
